| Place of Origin: | China |
| Brand Name: | DIZZO |
| Certification: | ISO9001:2015 |
| Model Number: | S60H |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 75 |
| Packaging Details: | Neutral Packing |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T,Alipay, wechat,Paypal |
| Supply Ability: | 20000 |
| Model Number :: | S60H Nozzle Tester | Material:: | Steel Material |
|---|---|---|---|
| Feature :: | Easy Operation | The Use Of :: | Auto Test Machine |
| Function :: | Professional Diagnose Tool | Language :: | Multi-language Support |

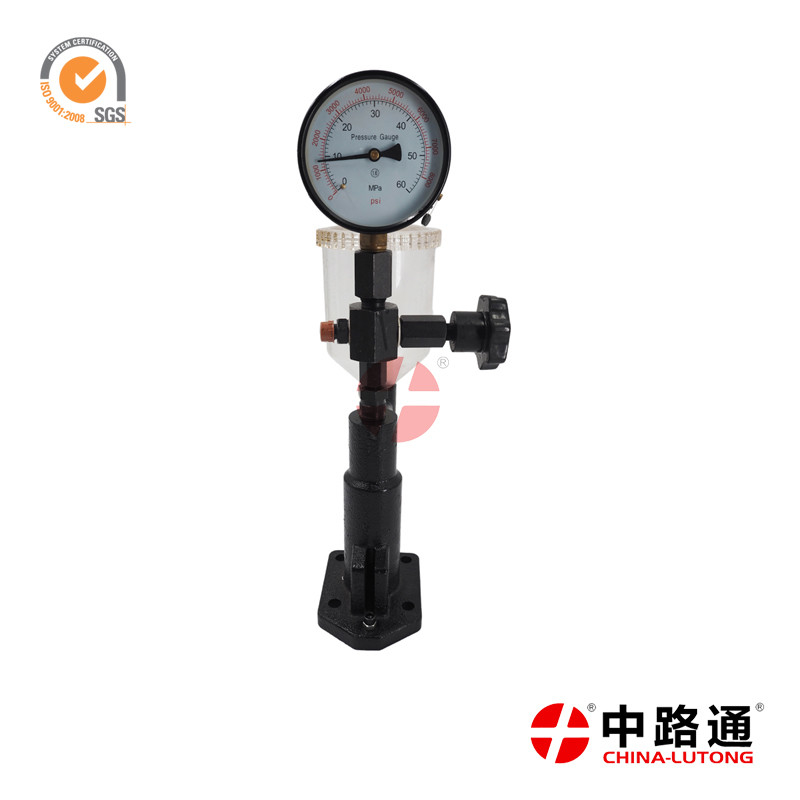

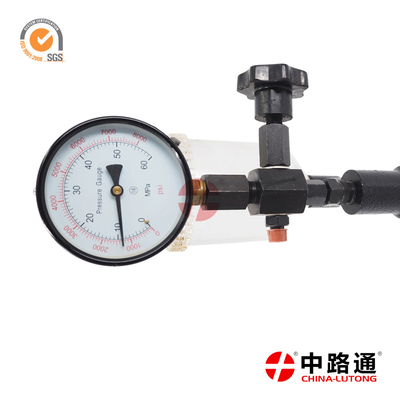

S60H bosch diesel fuel injector injection nozzle tester with with 0-60 Mpa (0-600 bar) pressure gauge in high quality
It is used to adjust and calibrate the injection nozzle opening pressure and to carry out leakage, spray pattern and chatter characteristic tests.
For nozzle size R, S and T.

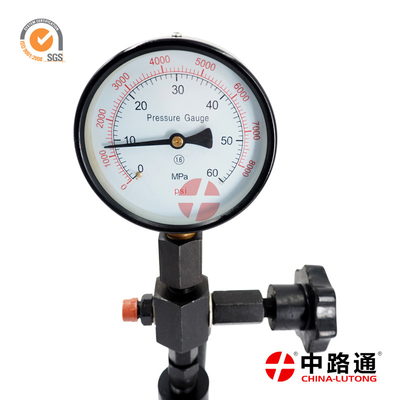

In basic design with 0-60 Mpa (0-600 bar) pressure gauge.
In conjunction with a specially ordered pressure gauge, this tester can also be used for testing light crude oil injection valves.
pressure gauge range(Mpa):0-60
overall dimensions:(mm) 150*120*350
capacity of fuel tank(L):3.5
largest pressure tested(Mpa):60
net weight:6kg
factory directly sale, high quality , stock available, fast delivery
wechat/whatsapp: 008613666938275
Email:sandy@china-lutong.net
more tester model numbers
| FPT003 | FPT003 |
| CRI-NT100B | CRI-NT100B |
| CRI-700 | CRI-700 |
| CRC-800 | CRC-800 |
| CR2000A | CR2000A |
| PE-CR1000A | PE-CR1000A |
| EPS100 | EPS100 |
| CR1000A | CR1000A |
| P2000(6) | P2000(6) |
| NO.951 | NO.951 |
| NO.947 | NO.947 |
| NO.933 | NO.933 |
| NO.1094 | NO.1094 |
| NO.1077A | NO.1077A |
| NO.1077 | NO.1077 |
| NO.1065 | NO.1065 |
| NO.1060-3 | NO.1060-3 |
common rail fuel injector nozzle tester digital for Bosch S60H diesel nozzle tester
