China Top Manufacturer and Supplier of Diesel Injection System Spare Parts!
 |
| Place of Origin: | China |
| Brand Name: | DIESEL PARTS |
| Certification: | ISO9001:2015 |
| Model Number: | S60H |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | commonraildieselparts |
| Packaging Details: | Neutral Packing |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T,Alipay, wechat,Paypal |
| Supply Ability: | 20000 |
| Model Name: | S60H | Pressure Range:: | 60 Mpa (600 Bar) |
|---|---|---|---|
| Oil Glass:: | 0.8L | Plunger Bore:: | 2/5'' |
| Nozzle Connector:: | M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5 | Whatsapp: | 008613666938275 |

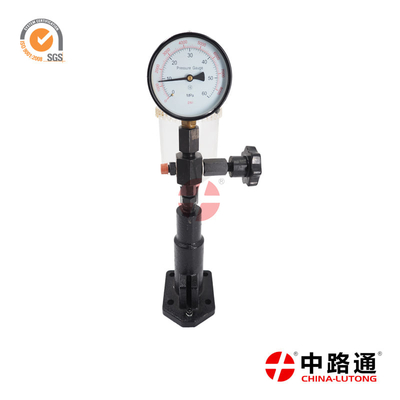

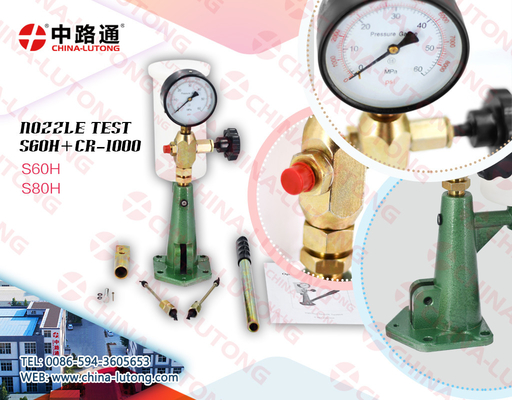

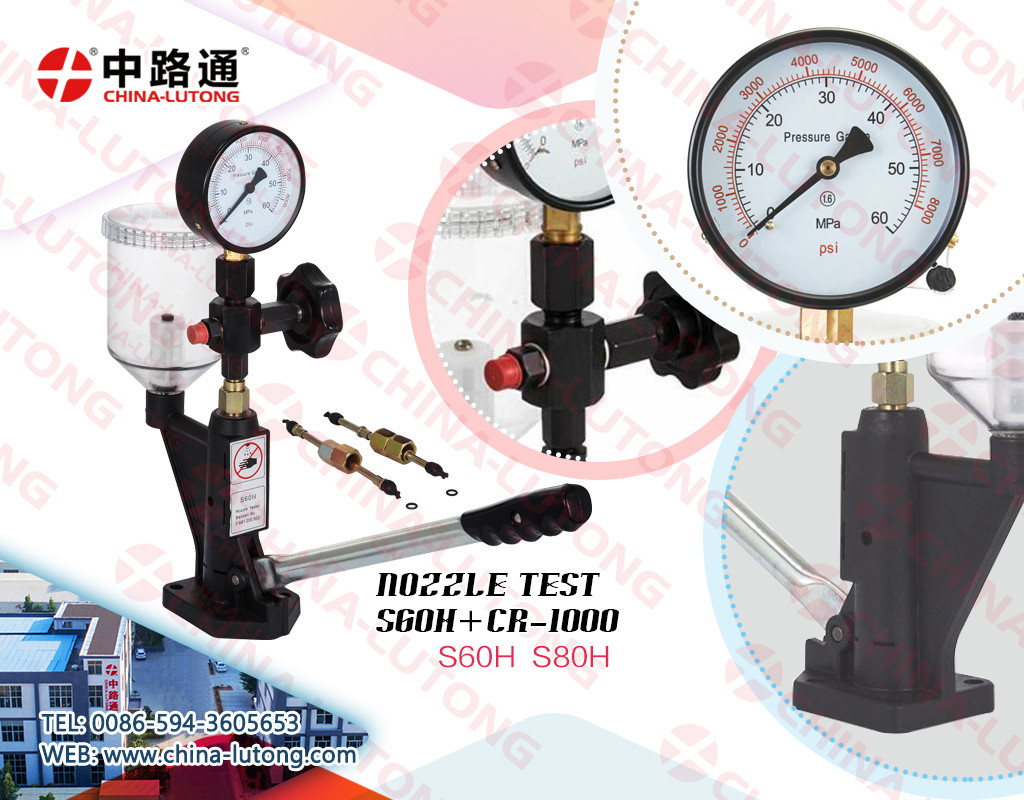

auto diagnostic tools diesel nozzle tester S60H for bosch nozzle tester efep 60h
S60H bosch diesel fuel injector injection nozzle tester with with 0-60 Mpa (0-600 bar) pressure gauge in high quality
It is used to adjust and calibrate the injection nozzle opening pressure and to carry out leakage, spray pattern and chatter characteristic tests.
For nozzle size R, S and T.
In basic design with 0-60 Mpa (0-600 bar) pressure gauge.
In conjunction with a specially ordered pressure gauge, this tester can also be used for testing light crude oil injection valves.
overall dimensions:(mm) 150*120*350
capacity of fuel tank(L):3.5
largest pressure tested(Mpa):60
net weight:8kg
factory directly sale, high quality , stock available, fast delivery
wechat/whatsapp: 008613666938275
Email:sandy@china-lutong.net
Specifications:
Colour: black.
Measurement ranges: 0 to 600 bar and 0 to 8000 PSI.
Pressure range: 60 Mpa (600 bar).
For diesel 6190/6200/6170.
Can pressure: ≥35.0MPa (350 bar).
Fuel tank capacity: 4000 mL
Oil glass: 0.8 L
Pressure: 0-60Mpa
Plunger Bore: 2/5''
Nozzle connector: M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5
Applicable models: carrier diesel engine.
Application: These diesel injector testers are suitable for all kinds of diesel injectors except common rail diesel injectors (CRDI).
Standard accessories:
handle with handle;
High pressure pipes type "A" and "B" with m.m. Nuts sized (12 x 1.5) and (14 x 1.5) for connections;
O-rings, 1 flat ring.
Equipped with original Bosch piston/element, delivery valve and filter.
For CR-C tester:
Please note that CR-C common rail injector tester is only for electromagnetic injector, it is not with piezo function, if you need to buy more professional device which covers electromagnetic injector, and also covers PM me piezo injector.
Specifications:
Production model: CR-C common rail injector tester
Test range: automation, pilot, emission and full load condition.
Test injectors: for bos-ch, for Den-so and for Del-phi common rail injectors.
Power supply: AC 110V.
Operating temperature: -30°-80°C.
Size: 110*250*190mm
Adjustable width: 10 ms.
Adjustable frequency: 30 Hz.
Package for S60H:
1 main machine.
3 fuel rods.
1 set of accessories.
1 manual (Spanish language not guaranteed).
Package for CR-C:
1 CR-C main unit
1 main test lead.
1 Bos-ch connector
1 Del-phi connector.
1 connector for Denso
1 x cable clip connector
3 fuses.
